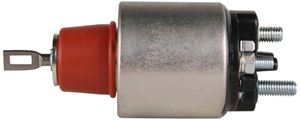

136615 - CARGO BOSCH ΑΥΤΟΜΑΤΟΣ ΜΠΟΥΤΟΝ ΜΙΖΑΣ BOSCH 0331303146, 2339303245 CARGO 136615 ZM ZM 2-475 ZM1639 Replacing 0331303146 BOSCH 2339303245 BOSCH ZM-2475 ZM
Κάντε κλικ για μεγέθυνση
-1000x1000.jpg "136615 - CARGO BOSCH ΑΥΤΟΜΑΤΟΣ ΜΠΟΥΤΟΝ ΜΙΖΑΣ BOSCH 0331303146, 2339303245 CARGO 136615 ZM ZM 2-475 ZM1639 Replacing 0331303146 BOSCH 2339303245 BOSCH ZM-2475 ZM") | -1000x1000.jpg "136615 - CARGO BOSCH ΑΥΤΟΜΑΤΟΣ ΜΠΟΥΤΟΝ ΜΙΖΑΣ BOSCH 0331303146, 2339303245 CARGO 136615 ZM ZM 2-475 ZM1639 Replacing 0331303146 BOSCH 2339303245 BOSCH ZM-2475 ZM") |  |  |  |  |  |
| Κωδικός: | 136615 - CARGO BOSCH ΑΥΤΟΜΑΤΟΣ ΜΠΟΥΤΟΝ ΜΙΖΑΣ BOSCH 03313031 |
Περιγραφή
Voltage 12, OD mm 56.25, Total length mm 145.75, Coil bolt M8, OD/cover mm 49.50, ID/cover mm 27.10, B+ M8, Height/B+ 15.00, Kl. 50/mm M6, Kl. 30h/mm M5, KL. 30H/Width 10.70, Coil bolt l. 10.15, KL. 50/Width 13.55, Drawing No20, No./terminals 4..jpg)
Electrical specifications |
||
|---|---|---|
| Voltage | 12 | |
Physical specifications |
||
|---|---|---|
| A | OD mm | 56.25 |
| B | Total length mm | 145.75 |
Bracket |
||
|---|---|---|
| M | Coil bolt | M8 |
| D | OD/cover mm | 49.50 |
| E | ID/cover mm | 27.10 |
| G | B+ | M8 |
| H | Height/B+ | 15.00 |
| K | Kl. 50/mm | M6 |
| T | Kl. 30h/mm | M5 |
| U | KL. 30H/Width | 10.70 |
| N | Coil bolt l. | 10.15 |
| L | KL. 50/Width | 13.55 |
|
ΟΕ ΑΡΙΘΜΟΊ BOSCH 0331303146, 2339303245 CARGO 136615 ZM ZM 2-475
|
|
|
ΕΦΑΡΜΟΓΈΣ
BOSCH 0001110071, 0001110072, 0001218171, B001117153, B001117157, B001117161
ROVER ERR5445
