853.12B WEBASTO THERMO 230, 300, 350, AND DW 230, 300 HEATER PARTS
_1-1000x1000.jpg "853.12B WEBASTO THERMO 230, 300, 350, AND DW 230, 300 HEATER PARTS")
Κάντε κλικ για μεγέθυνση
 |  | -1000x1000.jpg "853.12B WEBASTO THERMO 230, 300, 350, AND DW 230, 300 HEATER PARTS") | -1000x1000.jpg "853.12B WEBASTO THERMO 230, 300, 350, AND DW 230, 300 HEATER PARTS") |
| Κωδικός: | 853.12B WEBASTO THERMO 230, 300, 350, AND DW 230, 300 |
Περιγραφή
THERMO 230 / 300 / 350
WEBASTO THERMO 230, 300, 350, AND DW 230, 300 HEATER PARTS.jpg)

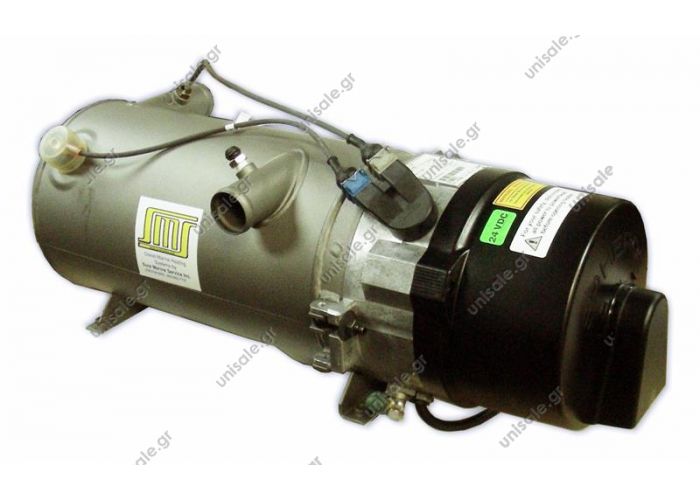

T230SW-24
 |
Thermo 230 24 VDC |
|
24 Volt Diesel Hydronic Heater with Marine Installation Manual & Surewire Kit |
|
|
Heat Output: |
80,000 btu |
| Fuel Consumption: |
.8 gal/hr |
| Voltage: |
24 volt |
|
Power Consumption (24v): Full: |
7 amps |
|
Coolant Operating Temperature: Opens at: Closes at: |
167° F (75° C) ±6°F 154° F (68° C) ±9°F |
| Dimensions: |
L 24.01" x W 9.69" x H 8.66" (610mm x 246mm x 220mm) |
| Weight: |
48.88 lbs (19 kg) |
|
he T230SW-24 80,000 btu hydronic heater offered by Webasto will heat up to a 58 foot sailboat or a 56 foot powerboat. The T230SW-24 utilizes 1-1/2” water hose to deliver heated coolant to 3/4” zones of fan heaters throughout the boat. The T230SW-24 uses a 2-3/4" rigid exhaust system, and a 1/4” supply and return fuel system. |
|
|
Featuring: Surewire Water:
The Surewire Water board puts all electrical connections into one place making installation and troubleshooting of your heater easier than ever before. The Surewire Water is for all Webasto Water heaters.
|
|
